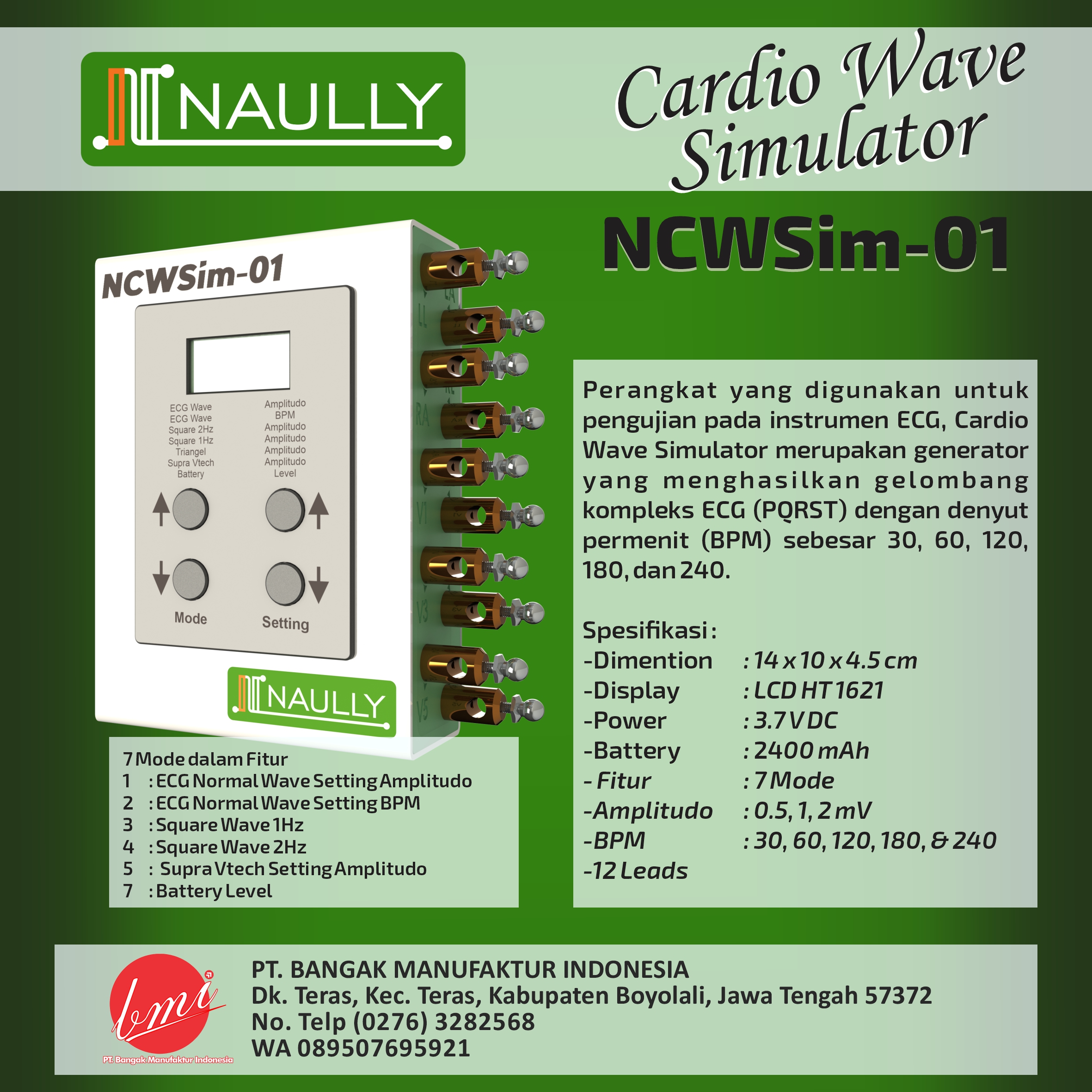

SPESIFIKASI:

- No. Sertifikat TKDN: 2347/TKDN/IK/VI/2023

- Sumber daya: Lithium-Ion rechargeable battery, 3.7 V, 3700mAh

- Battery life: 48 jam

- Output Charger: USB 5VDC,2A

- Input Charger: 220VAC,50-60Hz

- Dimensi Eksternal: 16cm(P)x 10cm(L) x 6.8 cm(T)

- Berat: 282gram

- Display: 4 Digit LCD-BW

- Tombol: 4xtouch panel,1x tombol ON/OFF

- Temperature Operasi: 10 °C to 40 °C (50 °F to 104 °F)

- Temperature Penyimpanan: 0 °C to 50 °C (32 °F to 122 °F)

- 12 Leads: I, II, III, avR, avL, avF, V1, V2, V3, V4, V5, V6

- Resolusi Amplitudo: 12 Bit

- Bentuk Gelombang: ECG wave ( normal QRS ),Kotak, Segitiga, Supra Vtech

- Kemasan: ABS plastic case Acrylic

- Mode dan Setting: :

- 1. ECG Wave: Set Amplitudo (0,5 mV, 1 mV, 2 mV)

- 2. ECG Wave: Set BPM (30, 60, 120, 180,240 BPM)

- 3. Square Wave 2Hz: Set Amplitudo (0,5 mV, 1 mV, 2 mV)

- 4. Square Wave 1Hz: Set Amplitudo (0,5 mV, 1 mV, 2 mV)

- 5. Triangle Wave 240 BPM: Set Amplitudo (0,5 mV, 1 mV, 2 mV)

- 6. Supra Vtech Wave 200 BPM: Set Amplitudo (0,5 mV, 1 mV, 2 mV)
